ELEMENTS OF THE IMMERSION ELECTRODISCHARGE DEVICE
"SKIF-100M"

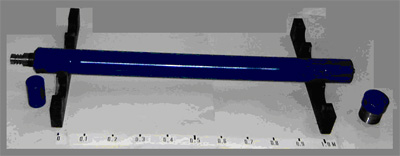

Charge unit

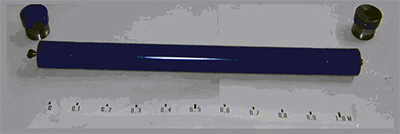

Capacitor
(Ñ=1.2 µF)

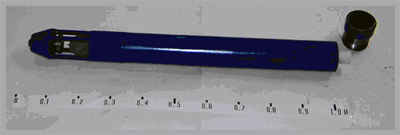

Discharger + Electrode system
Coupler
Immersion electrodischarge device in disassembled state
(convenient for transportation purposes)
